PROJECT 2: ORTHOGRAHIC, AXONOMETRIC,
PERSPECTIVE DRAWINGS
OUR TASK
In this project, we are going to produce 2-dimensional and 3-dimensional drawings using orthographic projections in three phases manually and continuously. We will producing 1 plan drawing, 2 elevations drawing and 1 section drawing.
​

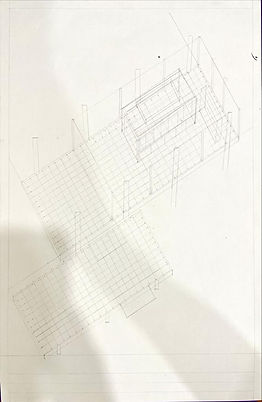

After that, we have to execute an axonometric projection by generating partial of an external and a sectional axonometric of the house.
​
Finally, we have to produce one exterior ( two-point) perspective followed by one sectional perspective (one-point).
PROGRESS
First time trying a axonometric drawing, is quite hard to learn, but is fun. It also laid the foundation for me
